Glue Tables
In this section we will go through the different tabs in the Table window. We can reach this view:
- by selecting a table from the data Catalog

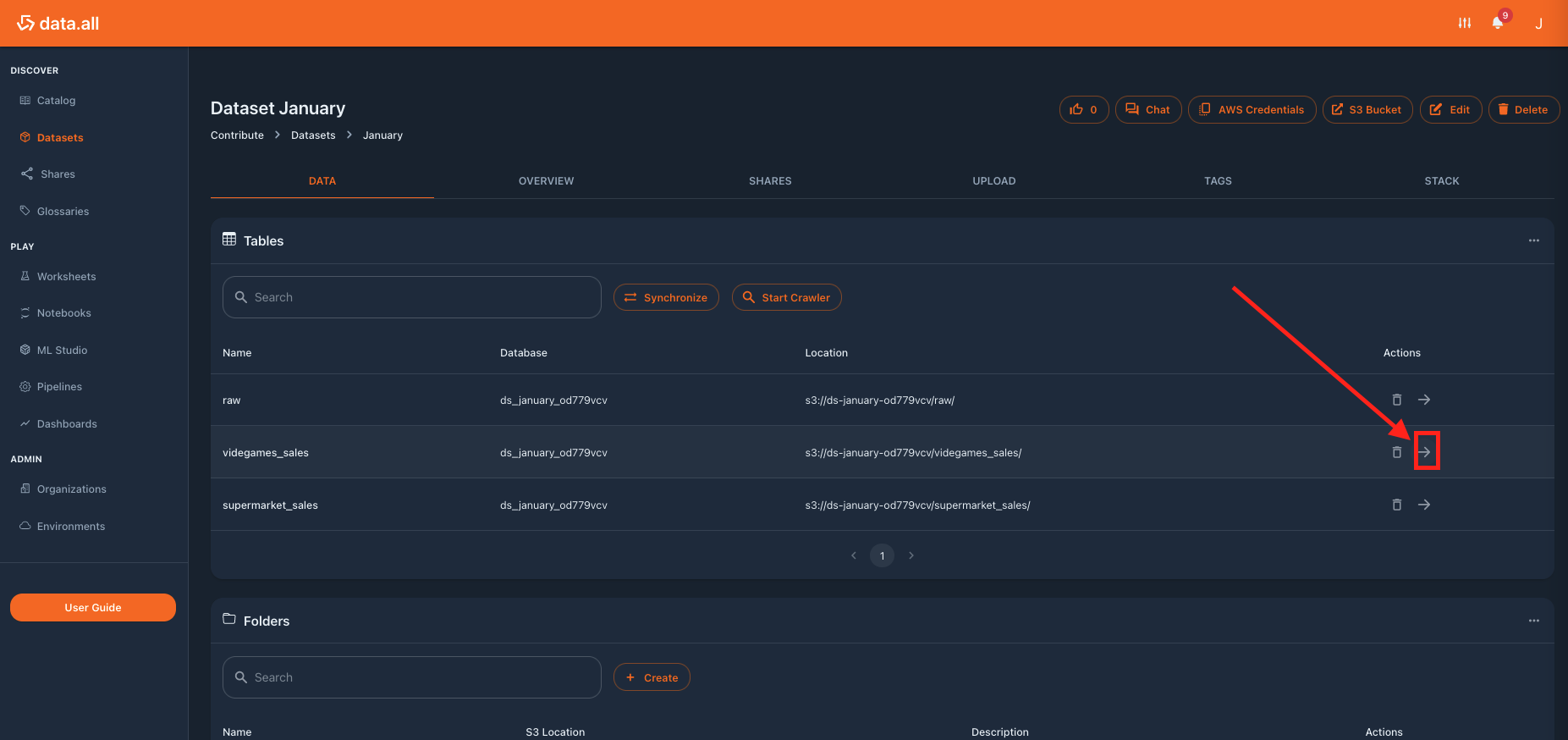

- or in the dataset view, in the Tables tab clicking on the arrow in the Actions column for the chosen table.
π Check table metadata
Also in the table window, go to the Overview tab where you will find the following information:
- URI: unique table identifier
- Name: name of the registered table in the Glue Catalog
- Tags
- Glossary terms
- Description
- Organization, Environment, Region, Team: inherited from the dataset
- Created: creation time of the table
- Status:
INSYNC
π Description, Tags and Glossary terms are not inherited!
If a dataset is tagged with Tags and Glossary terms, the child tables do not inherit these tags and terms. In the Overview tab, by clicking on Edit is where you can add them. Same applies for the description. Adding tags and terms to your tables will make them more discoverable in the Catalog.
βοΈ Add or edit table metadata
Edit your table metadata by clicking on the Edit button.

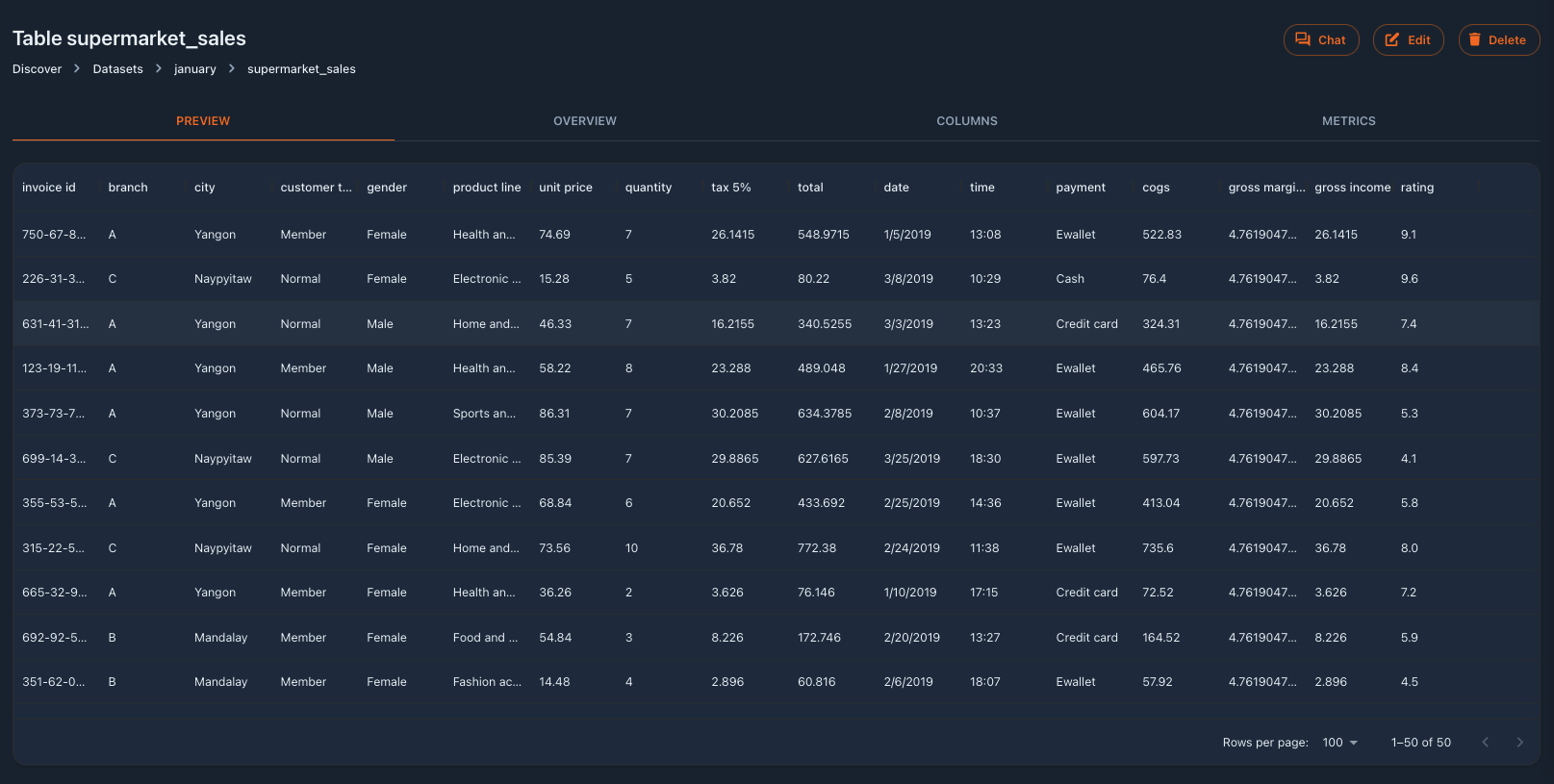

ποΈ Preview data
Data preview gives you the ability to preview a subset of the data available on data.all. Preview feature is available for data you own or data thatβs shared with you.
Just select a table and in the Preview tab you will find the results of an SQL select subset of the table.
π¬ Leave a message in Chat
As with datasets, in the Chats button users can interact and leave their comments and questions on the Table Chat.
π Add column description
Metadata makes more sense when columns description fields are not empty. With data.all you can add columns description and avoid the pain of figuring out fields purpose.

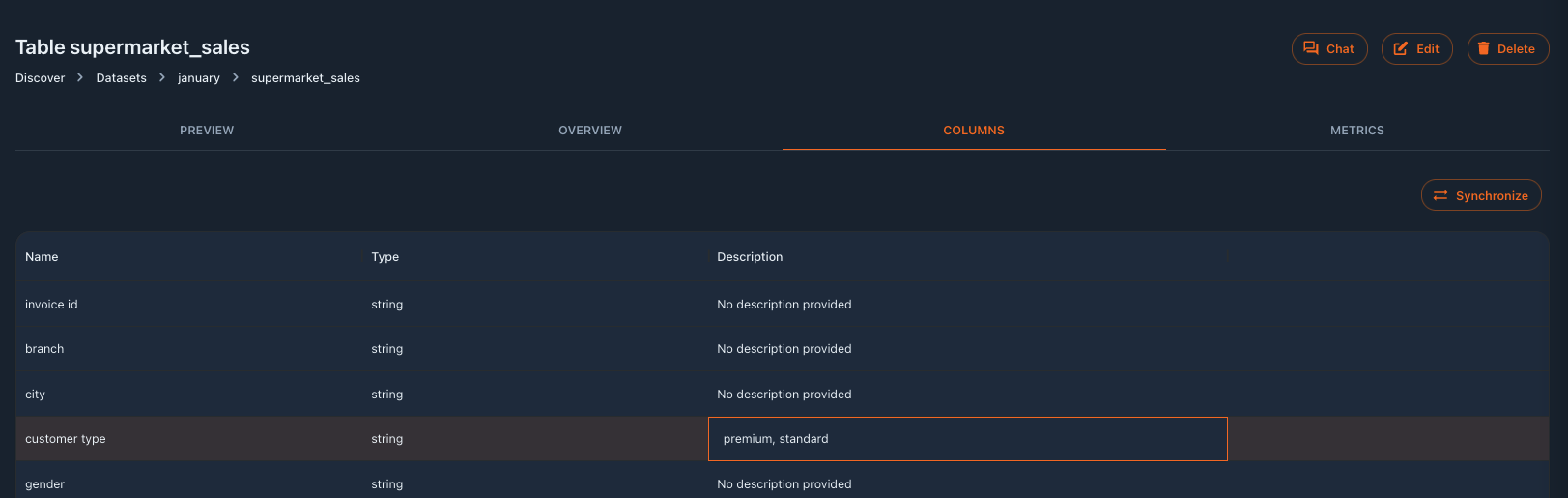

Select one table and in the Columns tab, directly type the description in the Description column as shown in the picture.
β Profile data
Data profiling refers to the process of examining, analyzing, and reviewing the data available in the source by collecting statistical information about the data setβs quality and hygiene. This process is called also data archaeology, data assessment, data discovery, or data quality analysis. Data profiling helps in determining the accuracy, completeness, structure, and quality of your data.
Data profiling in data.all involves:
- Collecting descriptive statistics like minimum, maximum, mean, median, and standard deviation.
- Collecting data types, along with the minimum and maximum length.
- Determining the percentages of distinct or missing data.
- Identifying frequency distributions and significant values.

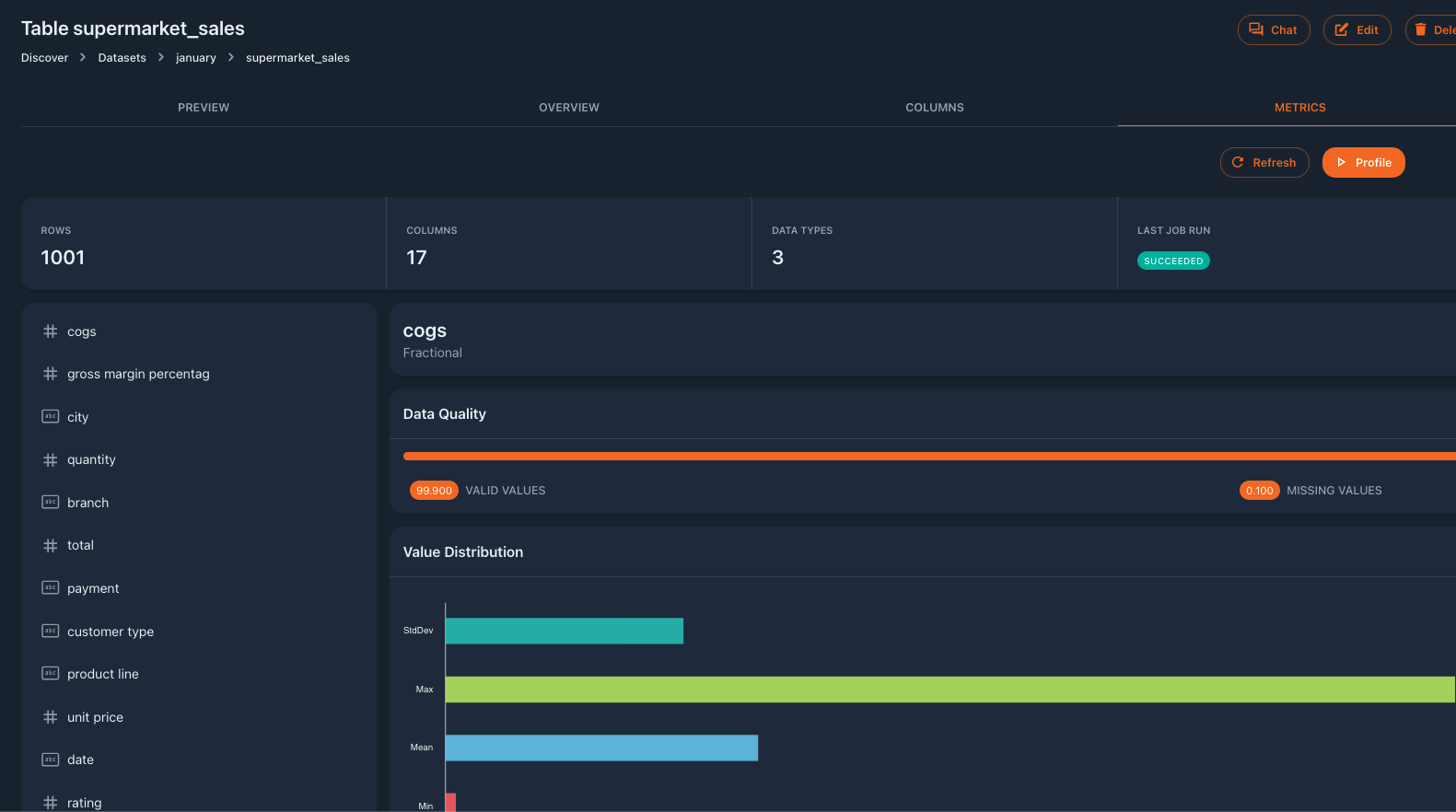

By selecting the Metrics tab of your data table you can run a profiling job (click in the Profile button) , or view the latest generated data profiling metrics:
β οΈ Profiling Job Prerequisite
Before running the profiling job you will need to ensure that the default Glue Database exists in the AWS Account where the data exists (by default this database exists for new accounts). This is required to enable the Glue profiling job to use the metadata stored in the Glue Catalog.
ποΈ Delete a table
Deleting a table means deleting it from the data.all Catalog, but it will be still available on the AWS Glue Catalog. Moreover, when data owners delete a table, they are not deleting its data from the dataset S3 bucket. Teams with shared access to the dataset cannot delete tables or folders, even if they are shared.

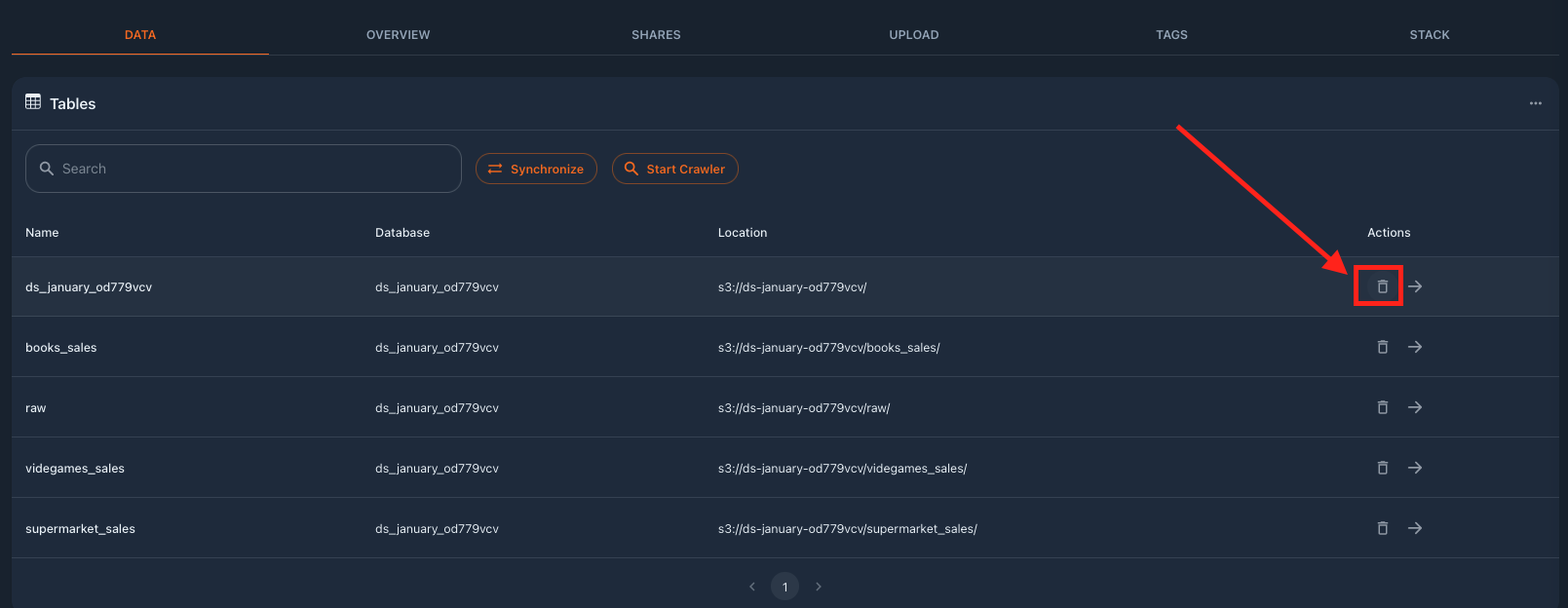

It is possible to delete a table from the dataset Tables tab with the trash can icon next to each of the tables in the Actions column.

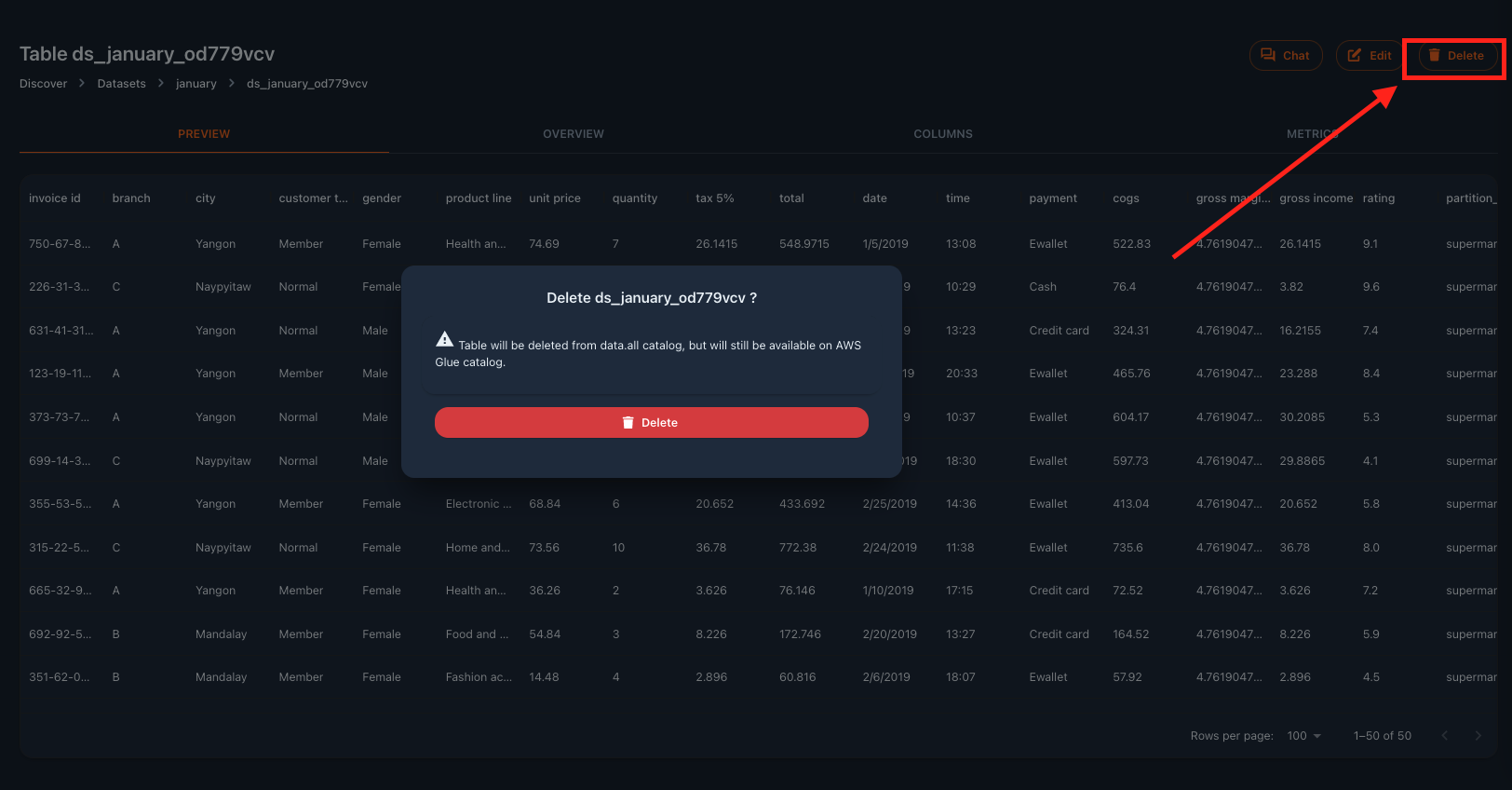

Another option is to go to the specific table (on the above picture click on the arrow icon next to the trash can icon). Click on the Delete button in the top right corner and confirm the deletion.
π¨ An error occurred (ResourceShared) when calling DELETE_DATASET_TABLE operation: Revoke all table shares before deletion
To protect data consumers, if the table is shared you cannot delete it. The share requests to the table need to be revoked before deleting the table. Check the Shares section to learn how to grant and revoke access.
S3 Folders
To open the Folder window you can either find your chosen folder in the Catalog or navigate to the dataset and
then in the Folders tab click on the arrow in the Actions column of your folder:
π Check folder and S3 metadata

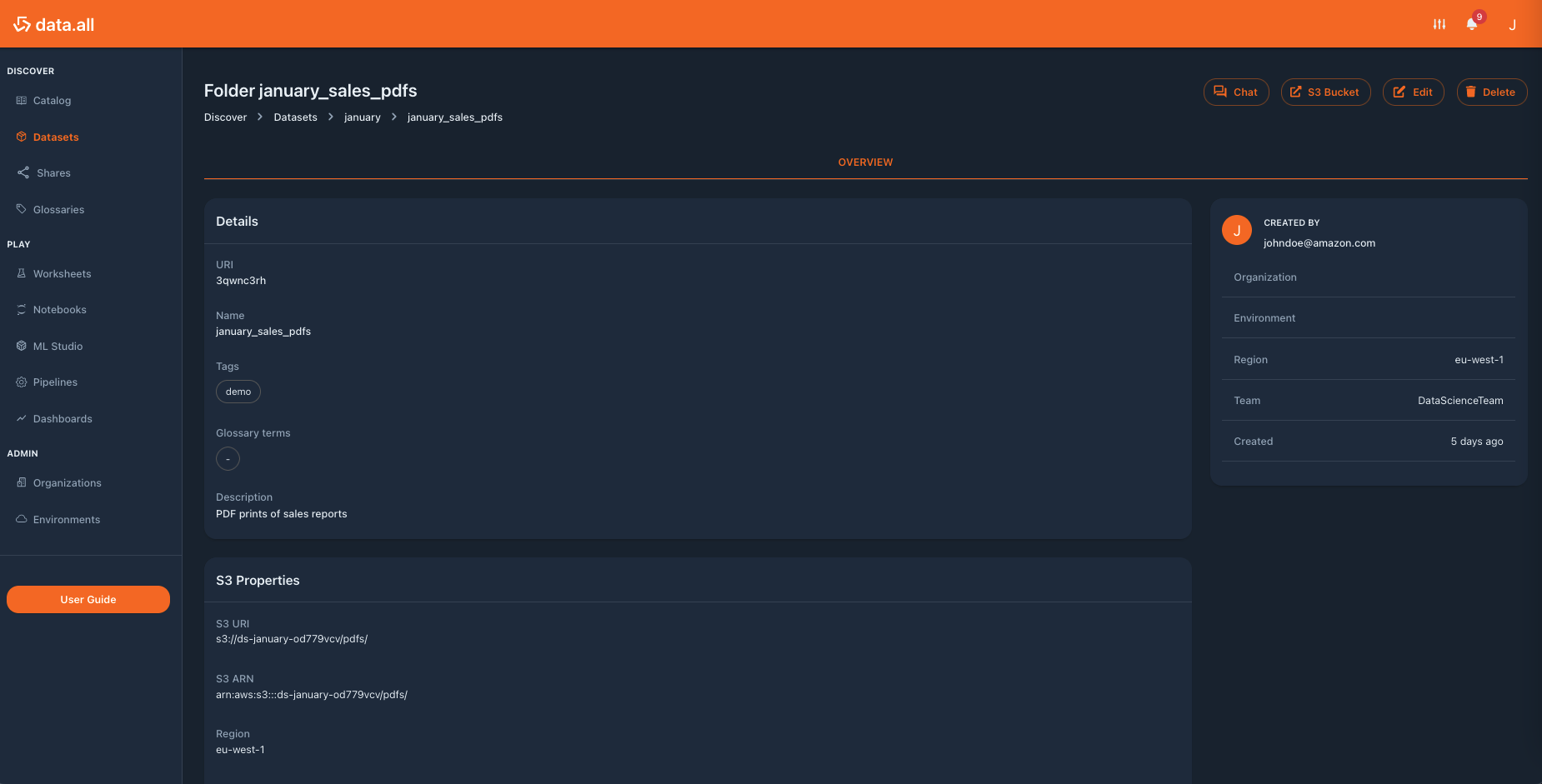

The Overview tab of the folder contains folder metadata:
- URI: unique folder identifier
- Name: name of the folder, it is made out of the dataset name concatenated with the S3 prefix
- Tags
- Glossary terms
- Description
- Organization, Environment, Region, Team: inherited from the dataset
- Created: creation time of the table
βοΈ Add or edit table metadata
Edit your folder metadata by clicking on the Edit button.
π Description, Tags and Glossary terms are not inherited
Careful, those 3 fields are not synced with their dataset metadata. Just click on the Edit button of the folder to complete any missing information. This is especially useful to improve Catalog search of your folders.
ποΈ Check the content of your folder

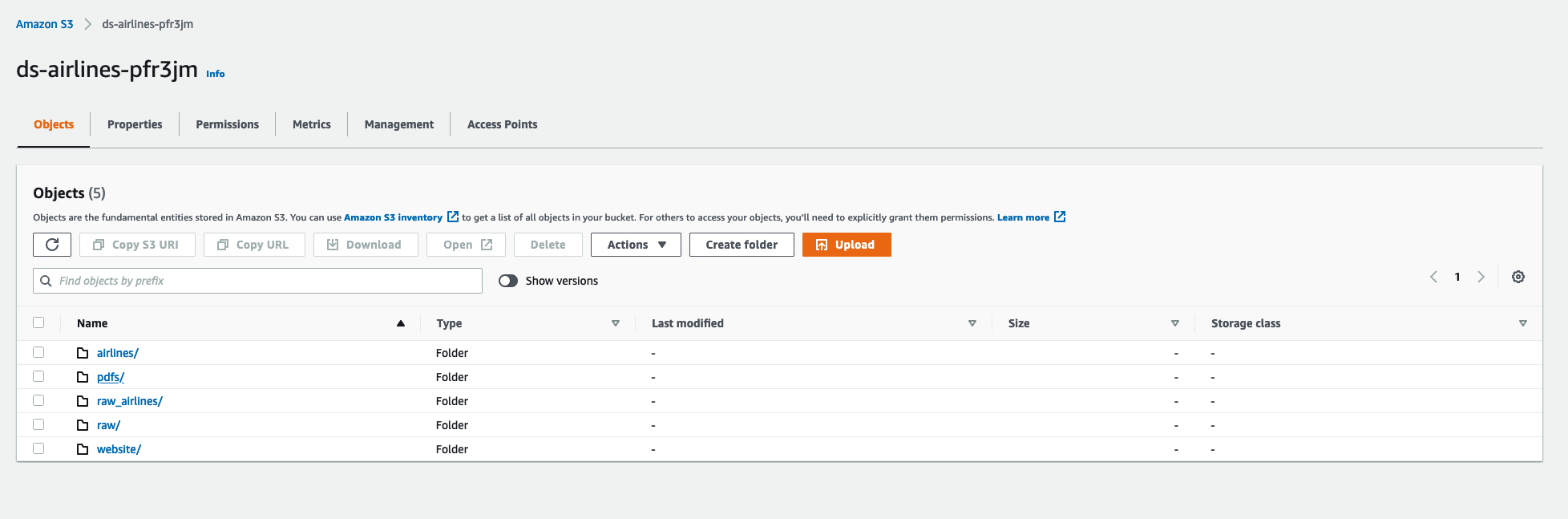

To check what kind of files does our prefix content, we can access the AWS S3 console on the S3 Bucket button of the Folder Overview tab.
π¬ Leave a message in Chat
Exactly the same as with tables. Allow your teams to discuss directly on the Folder Chat.
ποΈ Delete a folder
Deleting folders is analogous to deleting tables. Deletion means deletion from the data.all Catalog and the content of the S3 prefix remains in the dataset S3 bucket. Only dataset owners can delete dataset folders.

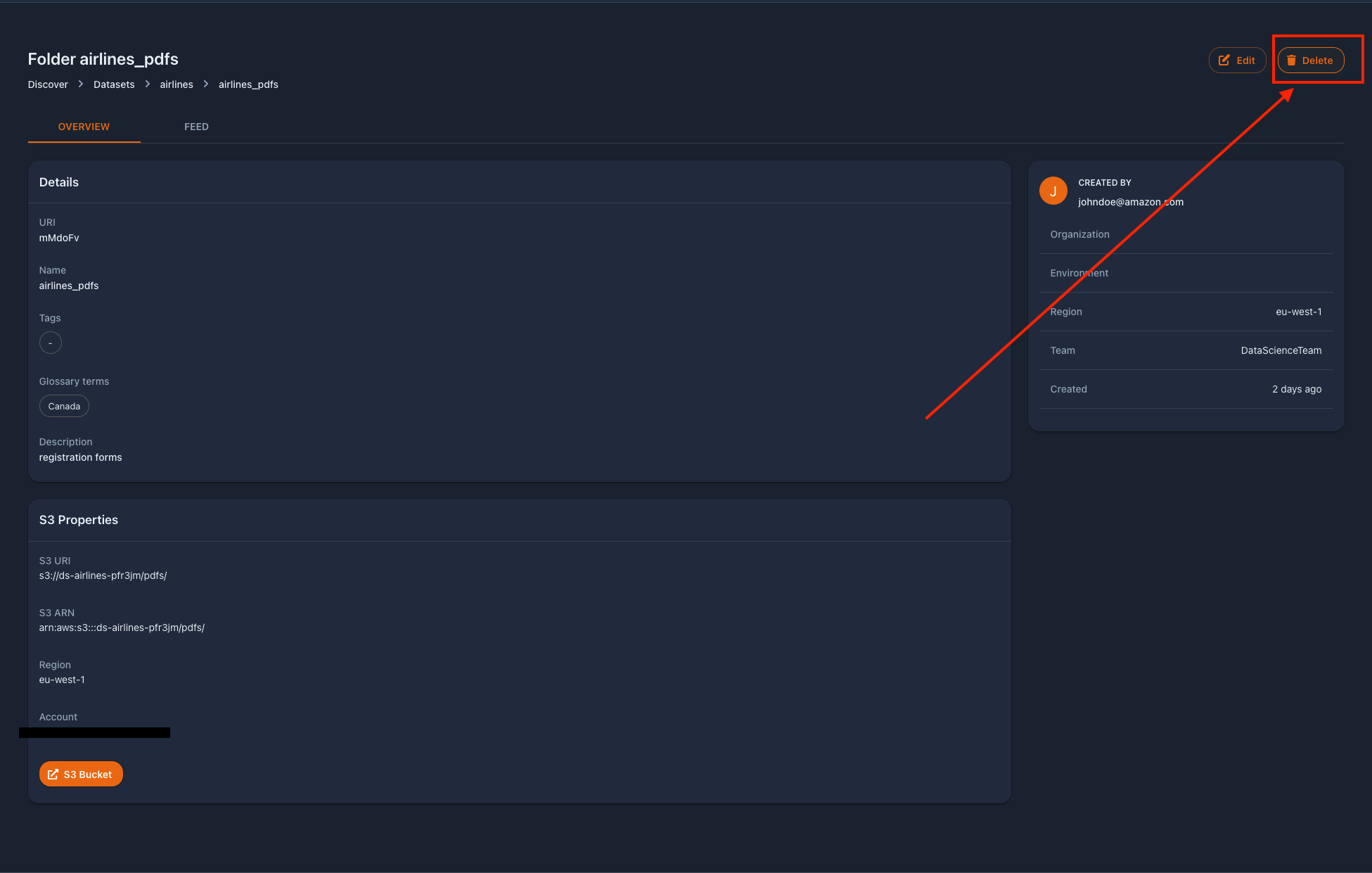

The steps to delete a folder are exactly the same as with tables. You can either go to the dataset and in the Folders tab click on the can trash icon on the Actions column of the selected folder; or you can navigate to the Folder and click on the Delete button.
π¨ An error occurred (ResourceShared) when calling DELETE_DATASET_FOLDER operation: Revoke all folder shares before deletion
To protect data consumers, if the table is shared you cannot delete it. The share requests to the table need to be revoked before deleting the table. Check the Shares section to learn how to grant and revoke access.
