    Notebooks

    Data practitioners can experiment machine learning algorithms spinning up Jupyter notebook with access to all your datasets. data.all leverages Amazon SageMaker instance to access Jupyter notebooks.

    📦 Create a Notebook

    ⚠️ Pre-requisites

    To use Notebooks you need to introduce your own VPC ID or create a Sagemaker Studio domain inside a VPC (read the docs). Provisioning the notebook instances inside a VPC enables the notebook to access VPC-only resources such as EFS file systems.

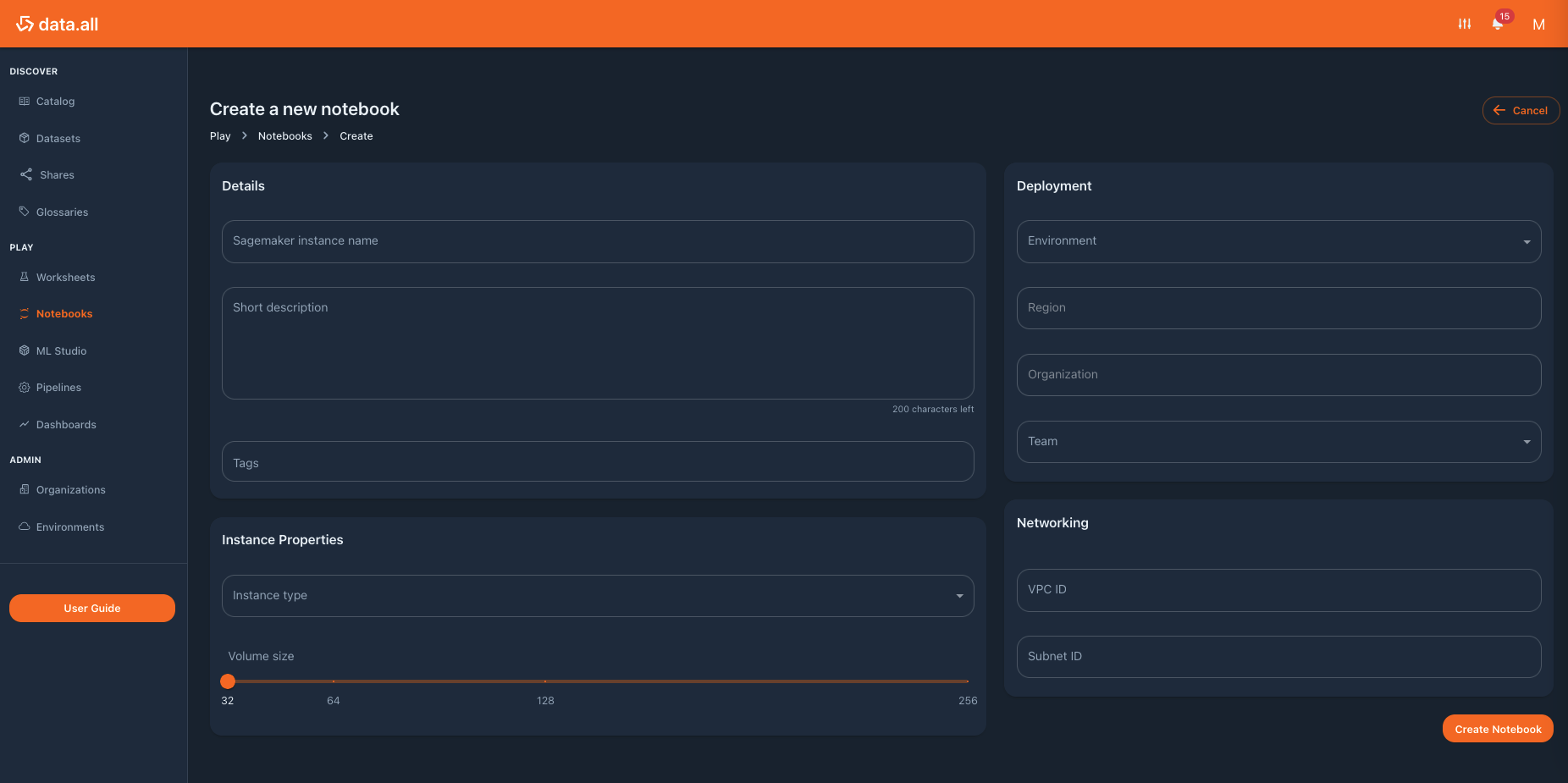

    To create a Notebook, go to Notebooks on the left pane and click on the Create button. Then fill in the following form:

    notebooks

    Field Description Required Editable Example
    Sagemaker instance name Name of the notebook Yes No Cannes Project
    Short description Short description about the notebook No No Notebook for Cannes exploration
    Tags Tags No No deleteme
    Environment Environment (and mapped AWS account) Yes No Data Science
    Region (auto-filled) AWS region Yes No Europe (Ireland)
    Organization (auto-filled) Organization of the environment Yes No AnyCompany EMEA
    Team Team that owns the notebook Yes No DataScienceTeam
    VPC Identifier VPC provided to host the notebook No No vpc-……
    Subnets Subnets provided to host the notebook No No subnet-….
    Instance type [ml.t3.medium, ml.t3.large, ml.m5.xlarge] Yes No ml.t3.medium
    Volume size [32, 64, 128, 256] Yes No 32

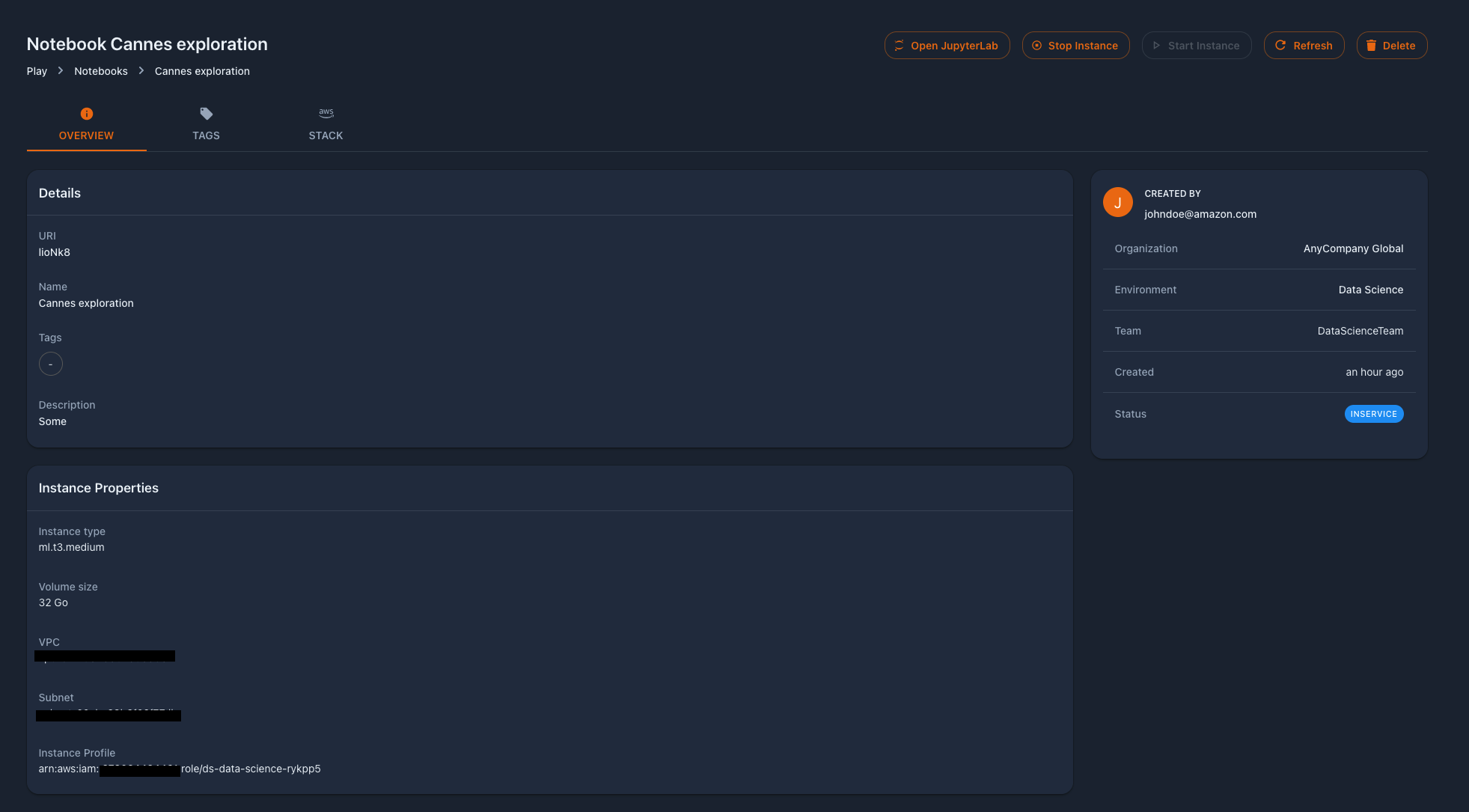

    If successfully created we can check its metadata in the Overview tab. Unlike other data.all resources, Notebooks are non-editable.

    notebooks

    ☁️ Check CloudFormation stack

    In the Stack tab of the Notebook, is where we check the AWS resources provisioned by data.all as well as its status. As part of the Notebook CloudFormation stack deployed using CDK, data.all will deploy:

    1. AWS EC2 Security Group
    2. AWS SageMaker Notebook Instance
    3. AWS KMS Key and Alias

    🗑️ Delete a Notebook

    To delete a Notebook, simply select it and click on the Delete button in the top right corner. It is possible to keep the CloudFormation stack associated with the Notebook by selecting this option in the confirmation delete window that appears after clicking on delete.

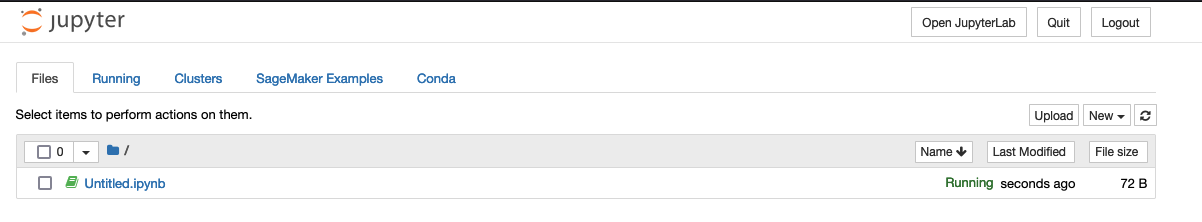

    💻 Open JupyterLab

    Click on the Open JupyterLab button of the Notebook window to start writing code on Jupyter Notebooks.

    buttons

    ⏹️ Stop/Start instance

    As we briefly commented, data.all uses AWS SageMaker instances to access Jupyter notebooks. Be frugal and stop your instances when you are not developing. To do that, close the Jupyter window and click on Stop Instance in the Notebook buttons. It takes a couple of minutes, just refresh and check the Notebook Status in the overview tab. It should end up in STOPPED.

    ✅ Save money, stop your instances

    This feature allows users to easily manage their instances directly from data.all UI.

    Same when you are coming back to work on your Notebook, click on Start instance to start the SageMaker instance. In this case the Status of the notebook should first be PENDING and once the instance is ready, INSERVICE.

    🏷️ Create Key-value tags

    In the Tags tab of the notebook window, we can create key-value tags. These tags are not data.all tags that are used to tag datasets and find them in the catalog. In this case we are creating AWS tags as part of the notebook CloudFormation stack. There are multiple tagging strategies as explained in the documentation.
