Platform Monitoring

As an administrator of data.all I want to know the status of data.all. In this section we will focus on the following aspects of monitoring:

• Platform observability
• Platform usage

Observability

It refers to the infrastructure of data.all, the frontend and backend.

AWS CloudWatch

As part of the deployment, data.all deploys observability AWS resources with CDK and ultimately in CloudFormation. These include AWS CloudWatch Alarms on the infrastructure: on Aurora DB, on the OpenSearch cluster, on API errors… Operation teams can subscribe to a topic on Amazon SNS to receive near real time alarms notifications when issues are occurring on the infrastructure.

AWS CloudWatch RUM

Additionally, if we enabled CloudWatch RUM in the config.json file when we deployed data.all we will be able to collect and view client-side data about your web application performance from actual user sessions in near real time.

Platform usage

I want to know how my teams are using the platform. Inside this category we answer questions such as “how many environments or datasets are in data.all?”.

RDS Queries

The first option is to query the RDS metadata database that contains all the information regarding environments, datasets and other data.all objects. You need access to the data.all infrastructure account, in which you will: 1) Navigate to RDS Console 2) Connect with secrets manager ARN 3) Get this ARN from AWS Systems Manager Parameter Store (search for “aurora”) 4) Run SQL statements to extract insights about the usage of the platform

Quicksight enabled monitoring

When we deployed data.all, we can configure optional monitoring of Quicksight, this is the enable_quicksight_monitoring parameter. If enabled, we allow AWS Quicksight to establish a VPC connection with our RDS metadata database in that account. We modify the security group of our Aurora RDS database to communicate with Quicksight, then we can use AWS Quicksight to create rich dynamic analyses and dashboards based on the information on RDS. Once the deployment is complete you need to follow the next steps:

1) Pre-requisite: Quicksight Enterprise Edition We need to subscribe to Quicksight and allow data.all domain to embed dashboards, follow the instructions in the step 4 of the Linking environment section.

2) Create Quicksight VPC connection

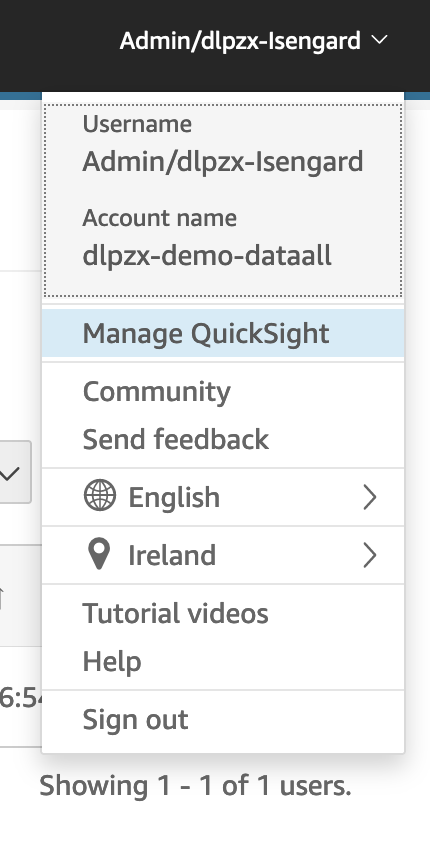

Follow the steps in the documentation and make sure that you are in the same region as the infrastructure of data.all. For example, in this case Ireland region.

To complete the set-up you will need the following information:

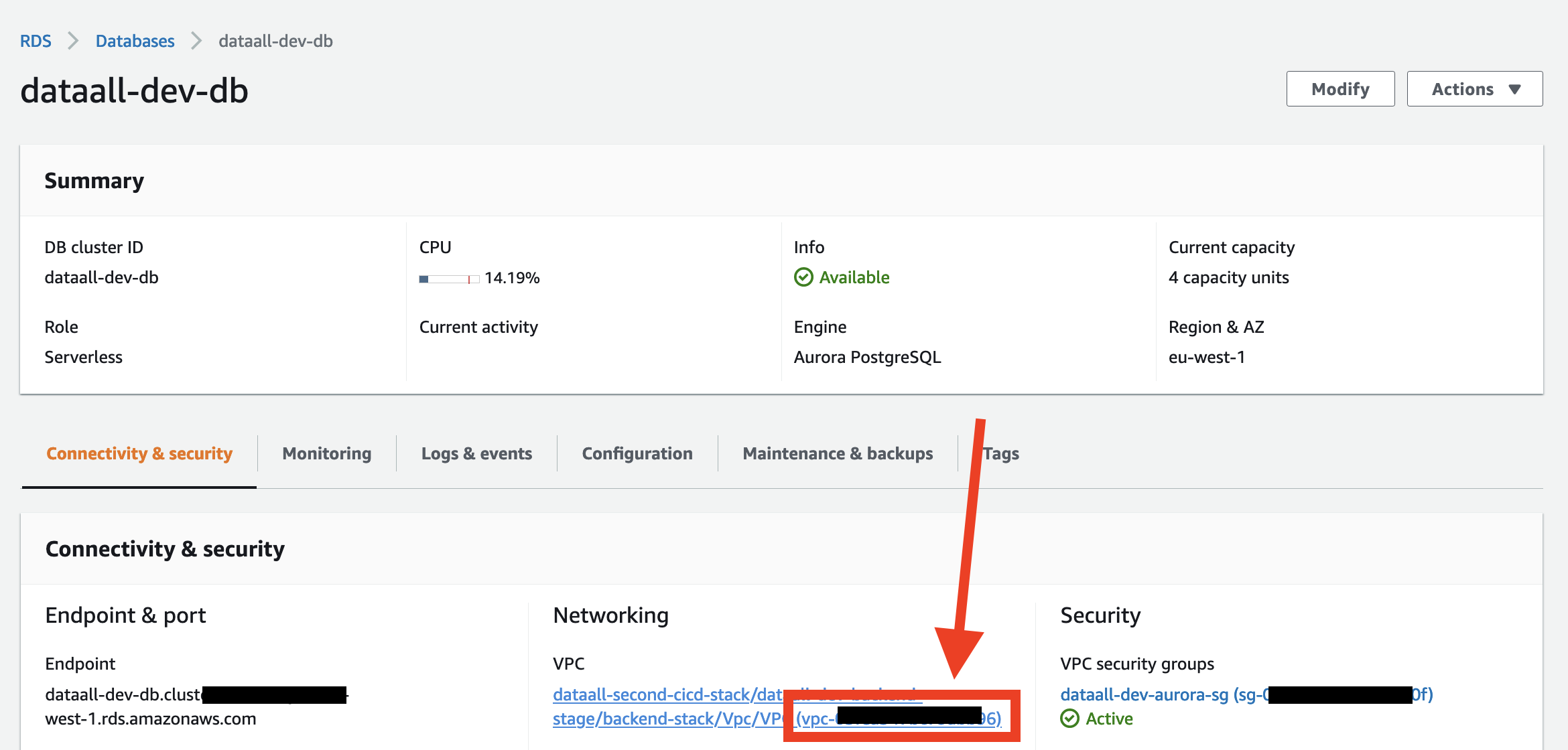

• VPC_ID of the RDS Aurora database, which is the same as the data.all created one. If you have more than one VPC in the account, you can always check this value in AWS SSM Parameters or in the Aurora database as appears in the picture:

• Security group created for Quicksight: In the VPC console, under security groups, look for a group called <resource-prefix>-<envname>-quicksight-monitoring-sg For example using the default resource prefix, in an environment called prod, look for dataall-prod-quicksight-monitoring-sg.

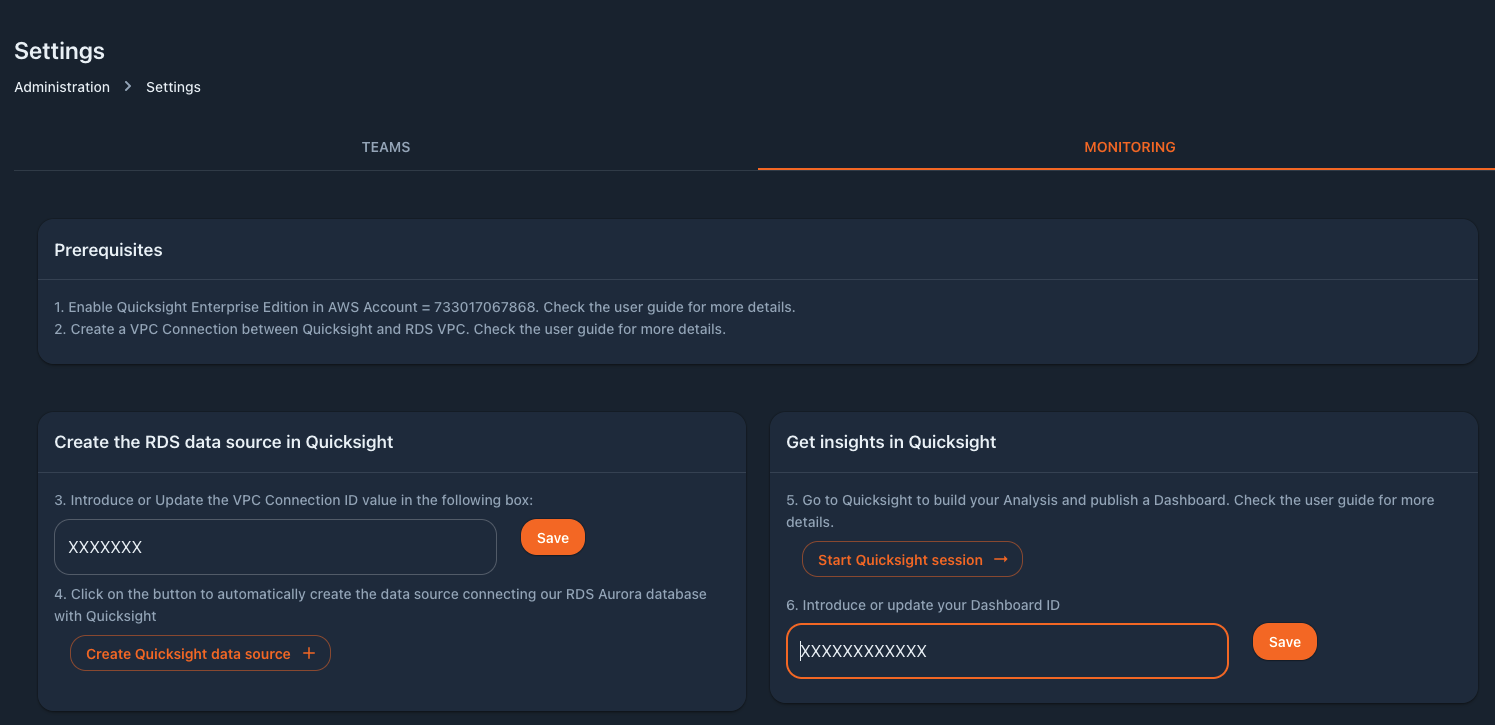

3) Create Aurora data source We have automated this step for you! As a tenant user, a user that belongs to DAADministrators group, sign in to data.all. In the UI navigate to the Admin Settings window by clicking in the top-right corner. You will appear in a window with 2 tabs: Teams and Monitoring. In the Monitoring tab, introduce the VPC connection name that you created in step 2 and click on the Save button. Then, click on the Create Quicksight data source button. Right now, a connection between the RDS database and Quicksight has been established.

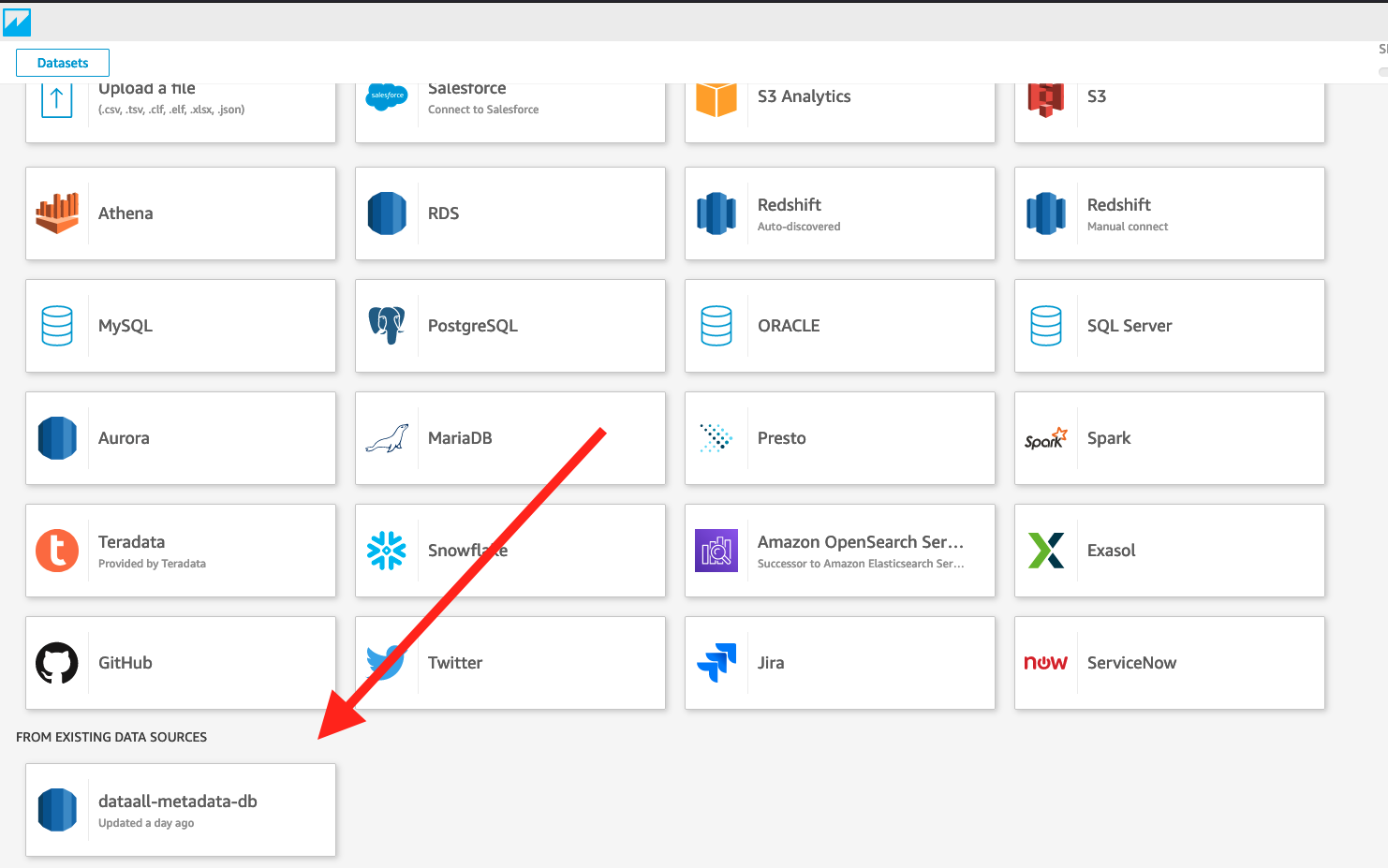

4) Customize your analyses and share your dashboards Go to Quicksight to start building your analysis by clicking on the Start Quicksight session button. First, you need to create a dataset. Use the dataall-metadata-db data source, this is our connection with RDS.

Use this dataset in an analysis (check the docs customization of analyses) and publish it as a dashboard (docs in publish dashboards)

💡 Not only RDS

With Quicksight you can go one step further and communicate with other AWS services and data sources. Explore the documentation for cost analyses in AWS with Quicksight or AWS CloudWatch Logs collection and visualization with Quicksight.

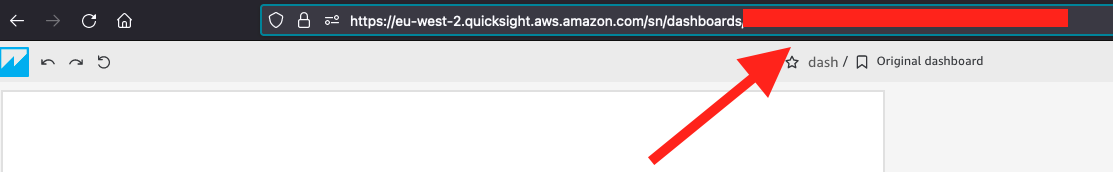

5) Bring your dashboard back to data.all Once your dashboard is ready, copy its ID (you can find it in the URL as appears in the below picture)

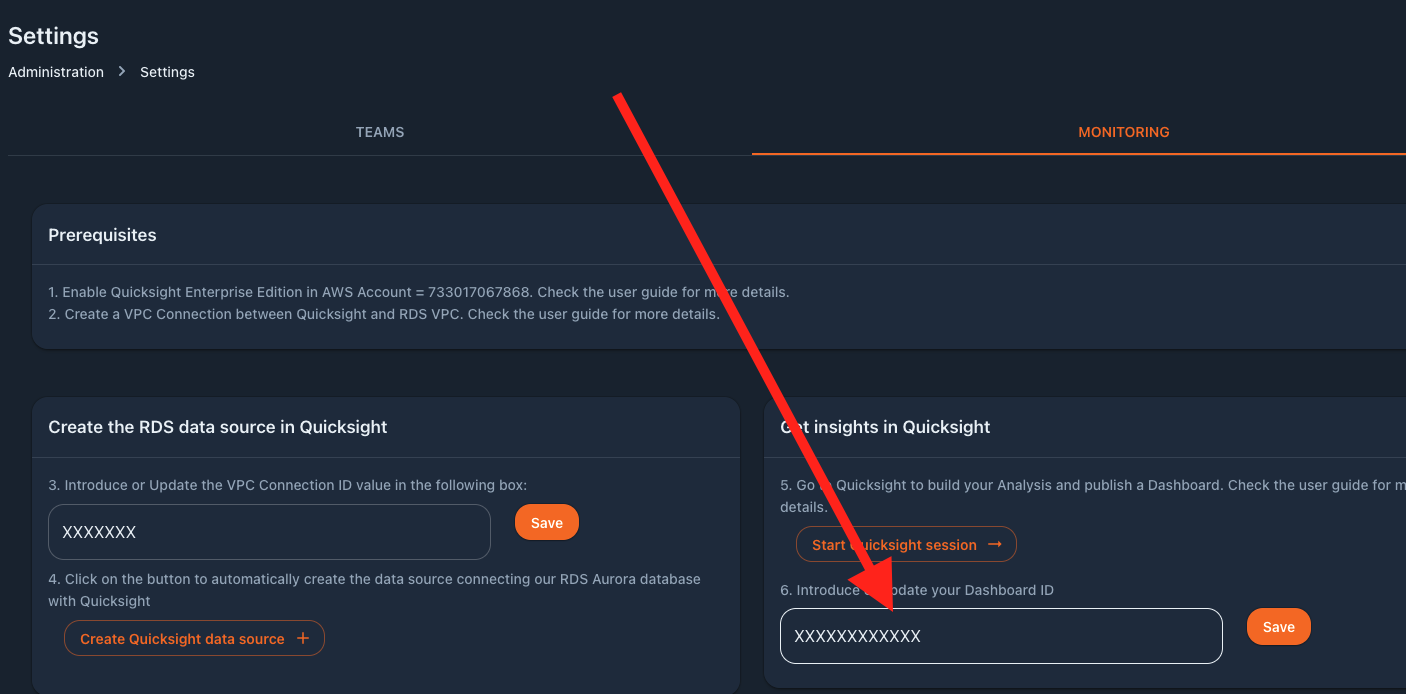

Back in the data.all Monitoring tab, introduce this dashbaord ID. Now, other tenants can see your dashboard directly from data.all UI!
